D5093SSS

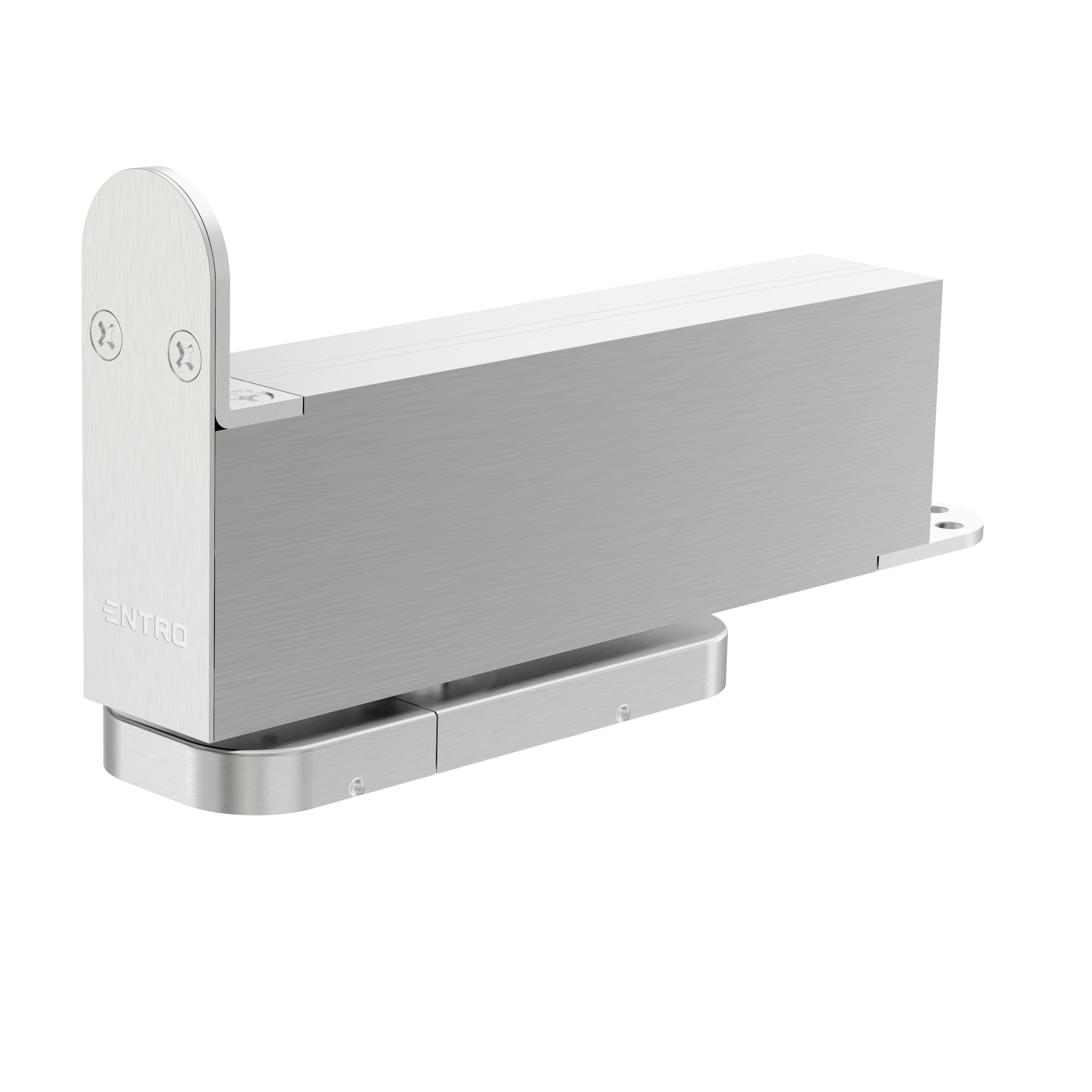

D5093 Concealed Hydraulic Pivot Closer Size 3 Hold Open SSS
- Quick Ship
- 25 Year Warranty
$295.73
Stock Level:
Low Stock
Overview
Description
D5000 Series Hydraulic Pivot Closers are the preferred option for ease of installation with minimal floor preparation when installing self-closing double action doors. The D5000 Hydraulic Pivot Closer is floor surface mounted with the closer body fully morticed into the door bottom rail.
Available in SSS as standard with multiple colour finishes available on request.
• Fixed power size 3
• Adjustable closing & latching speed
• Min. 40mm timber door thickness
• Max. 100kg door weight
• Max. 1000mm door width
• Maximum door opening angle at 150°
• Mechanical hold-open at 90°
• Factory Tested to 300,000 cycles
• Adjustable top pivot included
• Finish: SSS
Downloads
